Commercial Air Conditioning Without External Units

Our commercial range is engineered to meet the demands of everything from boutique retail spaces to large open-plan environments. With capacities spanning from 2.7 kW to 16 kW, and a comprehensive selection of ducted, cassette, floor-ceiling, column, and fully customised systems, we deliver flexible, scalable solutions tailored to each project’s operational and architectural requirements. Whether the priority is discreet aesthetics, advanced zoning, integration with existing building systems, or high-capacity performance, Bel Clima provides intelligently designed climate solutions adaptable to virtually any commercial application.

Commercial Air Conditioning Without External Units


Bel Clima provides internal air conditioning and heat pump systems for:

  • High street retail
  • Coffee shops & restaurants
  • Offices
  • Clinics
  • Grade II listed buildings

Get your Commercial Air Conditioning System in 4 simple steps!

ON LINE ESTIMATE

Tell us a few details about your commercial premises to get an estimate of your price via e-mail.

EXPERT CALL

Book a call with our team, so we can decide with you what solution fits your premises and your needs.

FREE SURVEY AND QUOTE

Get a technical survey of your premises, so we can give you best and  detailed quote.

ENJOY YOUR NEW AIR CONDITIONING SYSTEM!

Our expert team will install, test and demonstrate to you how to operate  – we work around your business hours to minimise disruption..

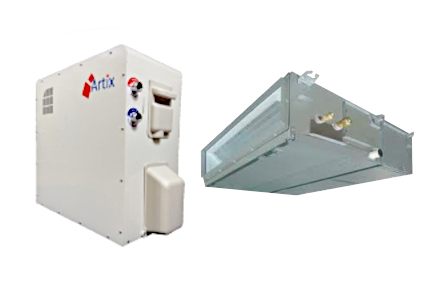

Ducted System Range

AHT 012 I CZ

  • Cooling capacity: 3.52 kW
  • Heating capacity: 3.61 kW
  • Energy class: A++ / A+
  • SEER / SCOP: 6.3 / 4.0
  • Max airflow: 600 m³/h
  • Static pressure: up to 60 Pa
  • Ideal for: small offices, consultation rooms, boutiques, hotel rooms, and professional studios.

AHT 018 I CZ

  • Cooling capacity: 5.28 kW
  • Heating capacity: 5.47 kW
  • Energy class: A++ / A+
  • SEER / SCOP: 6.5 / 4.0
  • Max airflow: 911 m³/h
  • Static pressure: up to 100 Pa
  • Ideal for: medium-sized offices, retail stores, restaurants, and multi-room commercial units.

AHT 024 I CZ

  • Cooling capacity: 7.03 kW
  • Heating capacity: 7.62 kW
  • Energy class: A++ / A+
  • SEER / SCOP: 6.2 / 4.0
  • Max airflow: 1229 m³/h
  • Static pressure: up to 160 Pa
  • Ideal for: open-plan offices, large retail shops, hospitality areas, and showroom spaces.

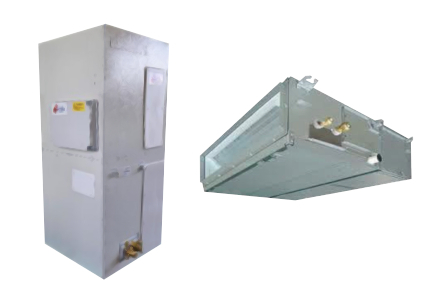

AHT 036 I CZ

  • Cooling capacity: 10.55 kW
  • Heating capacity: 11.72 kW
  • Energy class: A++ / A+
  • Max airflow: 2100 m³/h
  • Static pressure: up to 160 Pa
  • Ideal for: restaurants, coworking spaces, supermarkets, and medium commercial facilities.

AHT 048 I CZ

  • Cooling capacity: 14.07 kW
  • Heating capacity: 16.12 kW
  • Energy class: A++ / A+
  • Max airflow: 2400 m³/h
  • Static pressure: up to 160 Pa
  • Three-phase configuration
  • Ideal for: large offices, hospitality venues, fitness centers, and high-occupancy spaces.

AHT 060 I CZ

  • Cooling capacity: 15.24 kW
  • Heating capacity: 18.17 kW
  • Energy class: A++ / A+
  • Max airflow: 2600 m³/h
  • Static pressure: up to 160 Pa
  • Three-phase configuration
  • Ideal for: shopping areas, conference halls, hospitality complexes, and large commercial facilities.

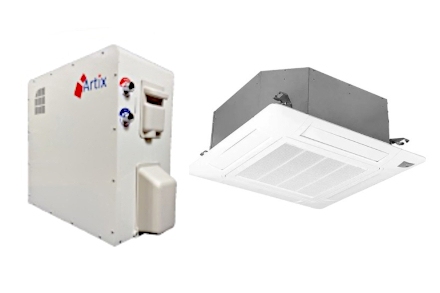

Cassette System Range

AHT 012 I CA

  • Cooling capacity: 3.52 kW
  • Heating capacity: 3.81 kW
  • SEER / SCOP: 6.6 / 4.0
  • Energy class: A++ / A+
  • Airflow: up to 620 m³/h
  • Indoor size: 570 × 570 × 260 mm
  • Single-phase outdoor unit
  • Best for: small offices, meeting rooms, boutiques, clinics.

AHT 018 I CA

  • Cooling capacity: 5.28 kW
  • Heating capacity: 5.57 kW
  • SEER / SCOP: 6.3 / 4.0
  • Energy class: A++ / A+
  • Airflow: up to 720 m³/h
  • Same compact 570 × 570 mm cassette format
  • Best for: retail stores, restaurants, professional studios.

AHT 024 I CA

  • Cooling capacity: 7.03 kW
  • Heating capacity: 7.62 kW
  • SEER / SCOP: 6.2 / 4.0
  • Energy class: A++ / A+
  • Airflow: up to 1300 m³/h
  • Larger cassette body: 830 × 830 mm
  • Best for: open-plan offices, hospitality spaces, large shops.

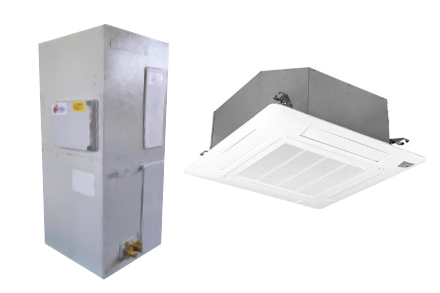

AHT 036 I CA

  • Cooling capacity: 10.55 kW
  • Heating capacity: 11.14 kW
  • SEER / SCOP: 6.7 / 4.0
  • Energy class: A++ / A+
  • Airflow: up to 1700 m³/h
  • Large 830 × 830 mm cassette format
  • Best for: restaurants, coworking spaces, mid-size supermarkets.

AHT 048 I CA

  • Cooling capacity: 14.07 kW
  • Heating capacity: 16.12 kW
  • SEER / SCOP: 6.1 / 4.0
  • Energy class: A++ / A+
  • Airflow: up to 1970 m³/h
  • Three-phase outdoor unit
  • Best for: large offices, gyms, hospitality venues, showrooms.

AHT 060 I CA

  • Cooling capacity: 15.24 kW
  • Heating capacity: 18.17 kW
  • SEER / SCOP: 6.3 / 4.0
  • Energy class: A++ / A+
  • Airflow: up to 2000 m³/h
  • Three-phase outdoor supply
  • Best for: supermarkets, conference halls, commercial complexes.

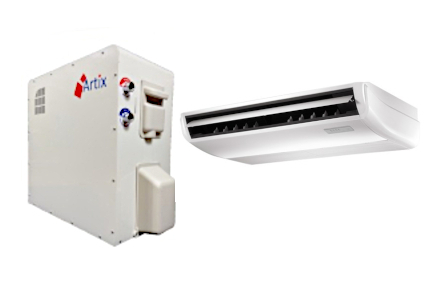

Floor and Ceiling System Range

AHT 018 I FC

  • Cooling capacity: 5.28 kW (2.71–5.86 kW)
  • Heating capacity: 5.57 kW (2.42–6.30 kW)
  • SEER / SCOP: 6.2 / 4.0
  • Energy class: A++ (cooling) / A+ (heating)
  • Airflow: up to 958 m³/h
  • Indoor dimensions: 1068 × 675 × 235 mm
  • Power supply: Single-phase (220–240V)
  • Ideal for: boutiques, offices, consulting rooms, small retail spaces.

AHT 024 I FC

  • Cooling capacity: 7.03 kW (3.22–7.77 kW)
  • Heating capacity: 7.62 kW
  • SEER / SCOP: 6.1 / 4.0
  • Energy class: A++ / A+
  • Airflow: up to 1192 m³/h
  • Single-phase outdoor unit
  • Power supply: Single-phase (220–240V)
  • Ideal for: restaurants, larger offices, showrooms.

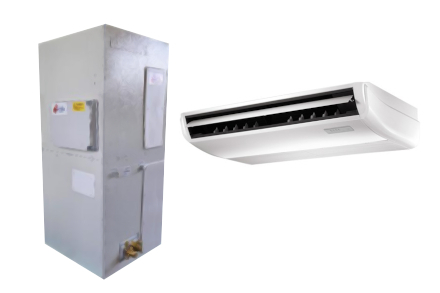

AHT 036 I FC

  • Cooling capacity: 10.55 kW (2.73–11.43 kW)
  • SEER / SCOP: 6.2 / 4.0
  • Energy class: A++ / A+
  • Airflow: up to 1955 m³/h
  • Single-phase outdoor power supply
  • Power supply: Single-phase (220–240V)
  • Ideal for: supermarkets, hospitality venues, open-space offices.

AHT 048 I FC

  • Cooling capacity: 14.07 kW (3.52–15.24 kW)
  • Heating capacity: 16.12 kW
  • SEER / SCOP: 6.1 / 4.0
  • Energy class: A++ / A+
  • Airflow: up to 2100 m³/h
  • Outdoor power supply: 380–415V, three-phase
  • Ideal for: gyms, conference halls, large retail spaces.

AHT 060 I FC

  • Cooling capacity: 15.83 kW (4.10–16.71 kW)
  • Heating capacity: 18.17 kW
  • SEER / SCOP: 6.1 / 4.0
  • Energy class: A++ / A+
  • Airflow: up to 2200 m³/h
  • Outdoor power supply: 380–415V, three-phase
  • Ideal for: commercial complexes, event spaces, large supermarkets.

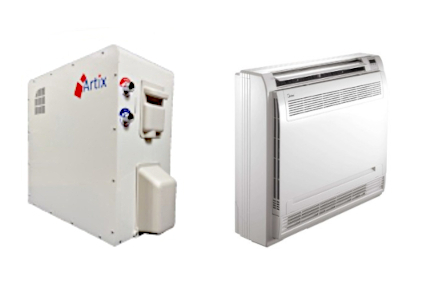

Console System Range

AHT 012 I CONSOLE

  • Cooling capacity: 3.52 kW (0.77–3.97 kW)
  • Heating capacity: 3.81 kW (0.46–4.35 kW)
  • SEER: 7.3
  • SCOP: 5.1
  • Energy class: A++ (cooling) / A+++ (heating – warm climate)
  • Airflow: 550 / 466 / 386 m³/h
  • Indoor dimensions: 700 × 600 × 210 mm
  • Power supply: 220–240V, 1Ph
  • Ideal for: Residential living areas, Hotel rooms, Offices with low window sills, Renovations replacing radiators


AHT 018 I CONSOLE

  • Cooling capacity: 4.84 kW (2.64–5.13 kW)
  • Heating capacity: 4.98 kW (2.20–5.24 kW)
  • SEER: 6.5
  • SCOP: 4.9
  • Energy class: A++ (cooling) / A++ (heating – warm climate)
  • Airflow: 560 / 480 / 400 m³/h
  • Indoor dimensions: 700 × 600 × 210 mm
  • Power supply: 220–240V, 1Ph
  • Ideal for: Larger living rooms, Professional offices, Boutique retail, Hospitality applications

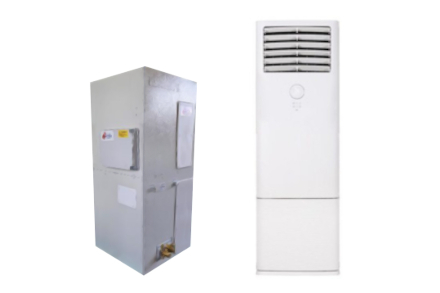

Column System Range

AHT 048 I TW

  • Cooling capacity: 14.07 kW (3.52–15.24 kW)
  • Heating capacity: 16.12 kW (4.10–17.00 kW)
  • SEER / SCOP: 6.1 / 4.0
  • Energy class: A++ (cooling) / A+ (heating)
  • Airflow: 2100 / 1850 / 1600 m³/h
  • Indoor dimensions: 1650 × 675 × 235 mm
  • Outdoor power supply: 380–415V, three-phace
  • Ideal for: Large retail stores, Industrial offices, Restaurants and hospitality venues, Showrooms and open commercial areas

AHT 060 I TW

  • Cooling capacity: 15.83 kW (4.10–16.71 kW)
  • Heating capacity: 18.17 kW (4.40–19.64 kW)
  • SEER / SCOP: 6.1 / 4.0
  • Energy class: A++ (cooling) / A+ (heating)
  • Airflow: 2200 / 1950 / 1650 m³/h
  • Indoor dimensions: 1650 × 675 × 235 mm
  • Outdoor power supply: 380–415V, three-phace
  • Ideal for: Supermarkets, Conference halls, Large commercial complexes, High-traffic public spaces
